Product Description

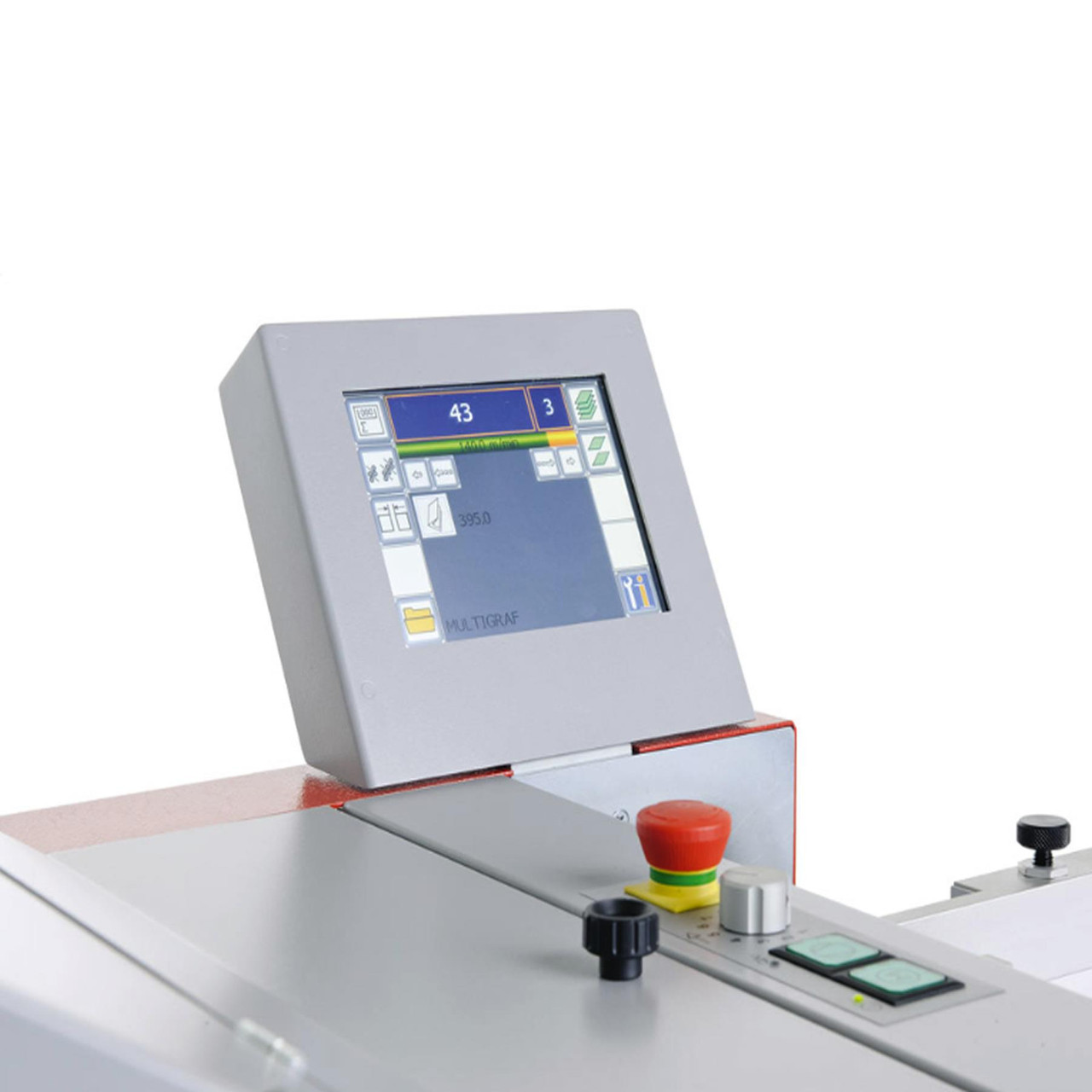

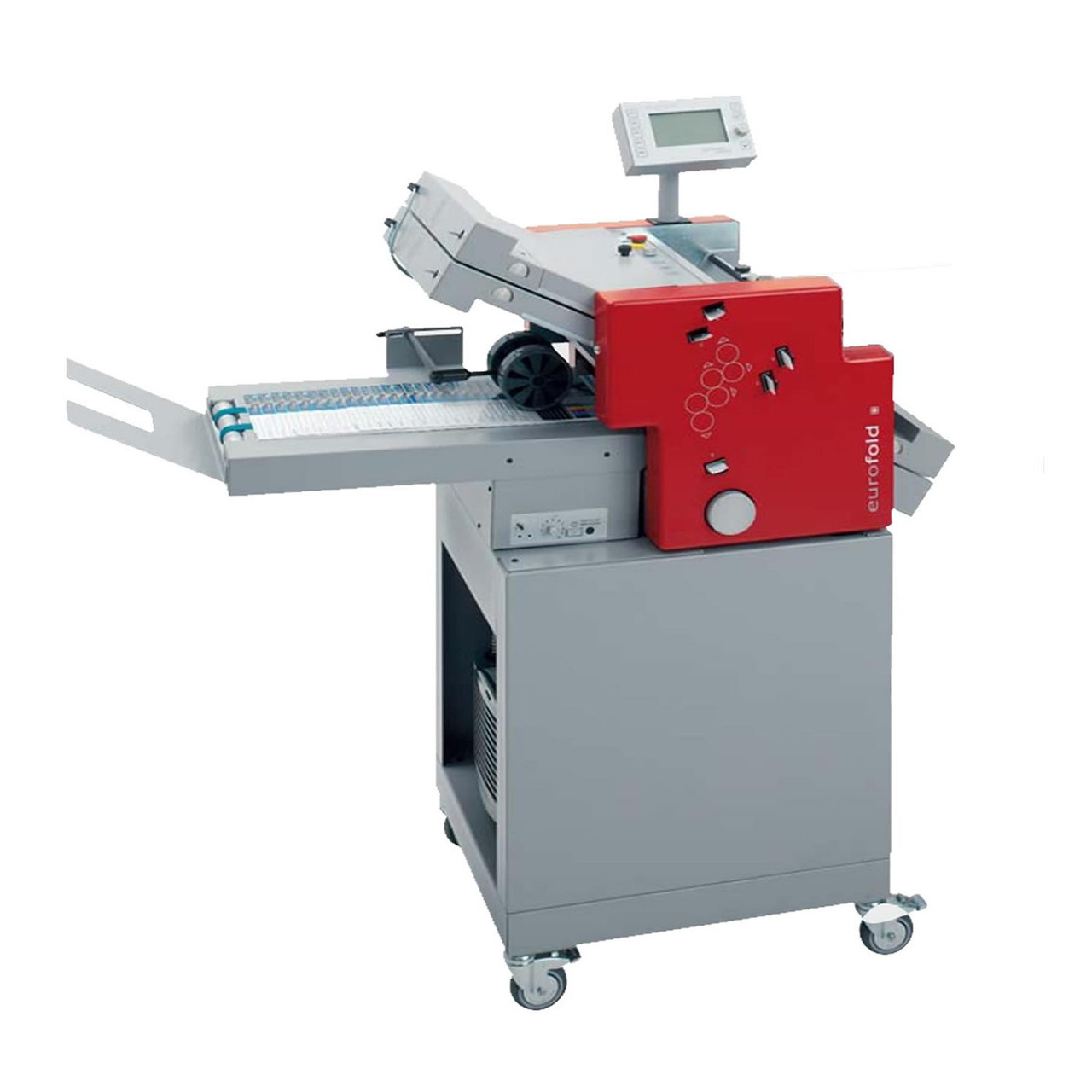

The Multigraf eurofold 435 / 445 paper folding machine is a 4 -plate modular folder ideally used for pharmaceutical instructions and other package inserts / leaflets for the medical industry. It is also ideal for instructions that require roll folds and anything that requires paper that needs to be folded down to a small size. It’s a high speed, multi-optional machine where you can choose addons for your own personal requirements. If the requirements of the user change or a higher specification is needed, the machine can be upgraded and adapted to the new situation at any time. You can choose between manual fold or automatic fold settings. Automatic fold plate adjustment is simple to use with a menu-guided control unit, and is more suited for jobs that are changing frequently. Recurring jobs can easily be stored in the memory.

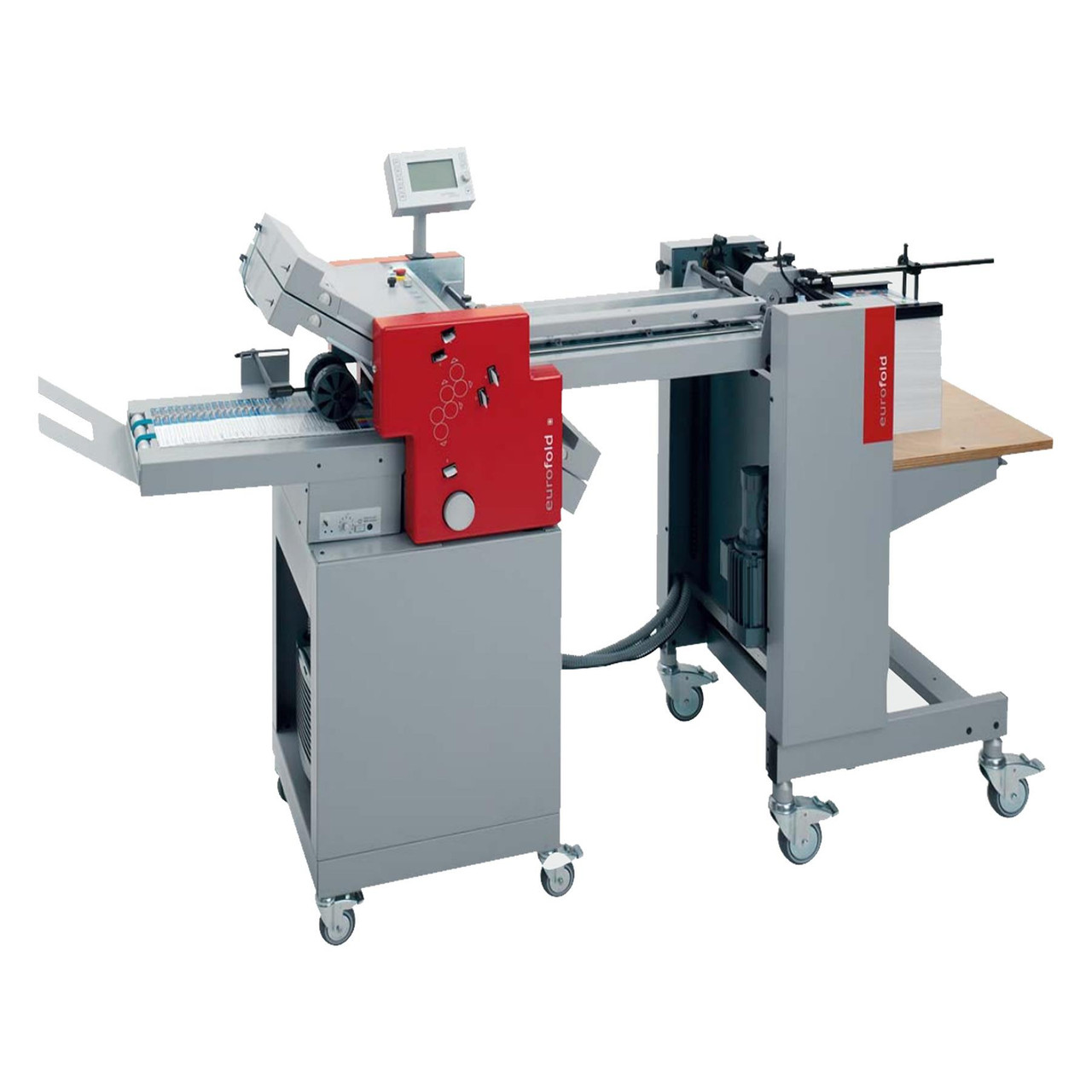

Choose between a friction or suction feeder or even a deep pile feeder for improved productivity. There's also an optional exit standing delivery system for small package inserts.
Available in A3 (EuroFold 435) or A2 (Eurofold 445) models, the Eurofold incorporates all of the common folds that you would expect from a 4 plate paper folding machine including Z fold, letter fold, double parallel, half fold, roll fold, triple parallel, 8 page zig zag, with options for custom folds.
Feel free to call to discuss the options, any other questions you may have or if you would like to visit our showroom to find the perfect machine.
Select your options:
1. Select the machine - Up to A3 (EuroFold 435) or up to A2 (Eurofold 445)
2. Select the feeder - Suction / Friction / Deep pile
3. Select the plates - Manual or Automatic
4. Select the exit delivery - Electric / Manual / Large
5. Select the counter - 3 types
6. Select the table - Standard / Height Adjustable
7. Select the pump - optional
Some options will be dependent of what’s selected. There's also an option for cross folding.
Postroom-online is one of the UK's biggest seller of folding machines and has been expertly servicing their products since 2001. With a massive range of paper folding machines to fit all needs and budgets, we are home to officially the LARGEST paper folding showroom in the UK.
We are happy to process and video a sample of your stock through our machines to test suitability first. Please contact us for more details.
Suitable For: | Mailroom / Print Room / Office |
Paper Size: | A3 / A4 / A5 / A6 |
Paper Weight: | 40 - 240gsm |
Fold Types: | Z, Letter, Half, Double Parallel, Engineering, Pharmaceutical and Custom Folds |
Cross Fold: | Yes with Optional Cross Fold Unit |
Sheets Per Minute: | 500 Optional Deep Feeder |
Sheets Per Hour: | 30000 |
Feed Tray Capacity: | 500 |
Speed Controller: | Yes |
Piece Counter: | Yes With Options |
Feed Type: | Friction or Suction |
Hand or Automatic Feed: | Automatic |
Multiple Sheets (AKA Manual Bypass): | No |
Conveyor for Exiting Paper: | Yes with Options |
Auto Shut Off: | Yes |
Jam Detect: | Yes |
Reload Whilst Running: | No |
Dimensions W x D x H (mm): | 939 x 482 x 558 |
Weight (Kg): | 140 |
Extended Warranty Maintenance Available: | Yes - Available |
Special Features 1: | 4 Plate folder |
Special Features 2: | Option Extras |
PDF Specs: |
PDF Manual: |
Supplies: |
