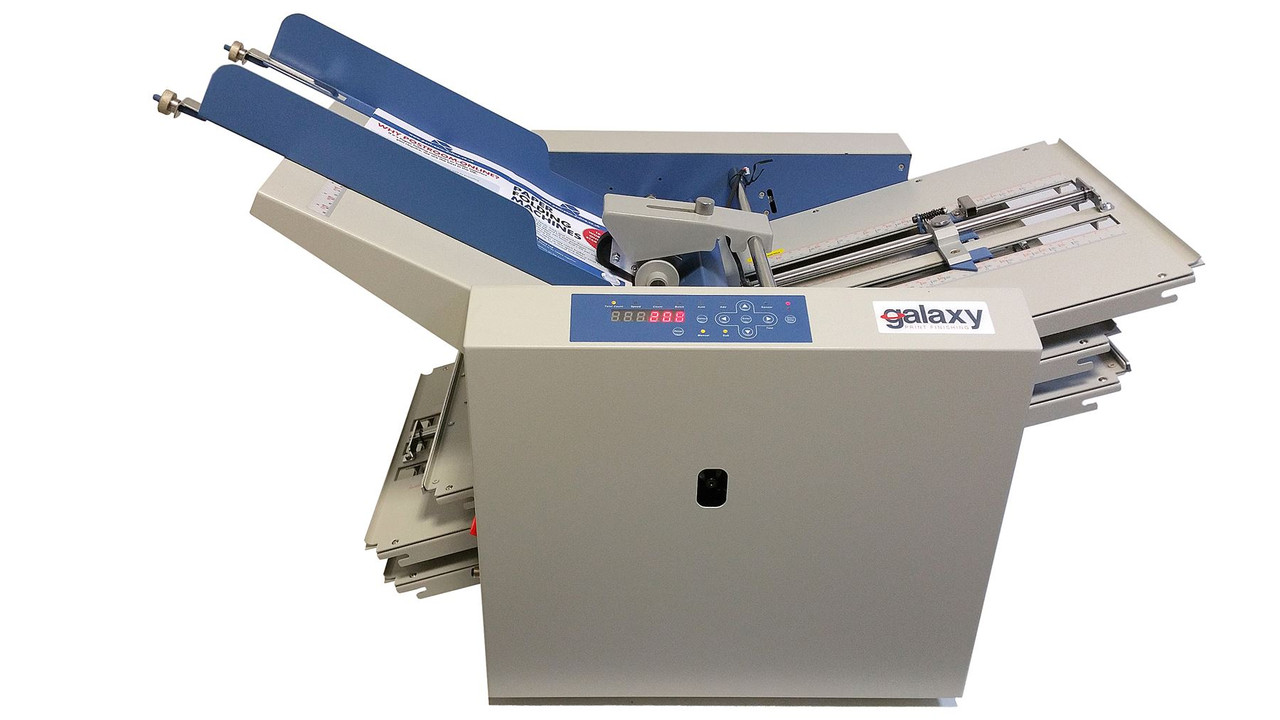

The smallest 6-plate paper folding machine available, the Galaxy PH65 Pharmaceutical Paper Folding Machine enables you to perform multiple small folds from as little as 18mm on 45 - 150gsm paper. This pharmacy folder is suitable for businesses that require small instructions/manuals to be folded prior to insertion into small product boxes. Other suitable businesses include those in the cosmetic, healthcare, production and parts markets/industries.

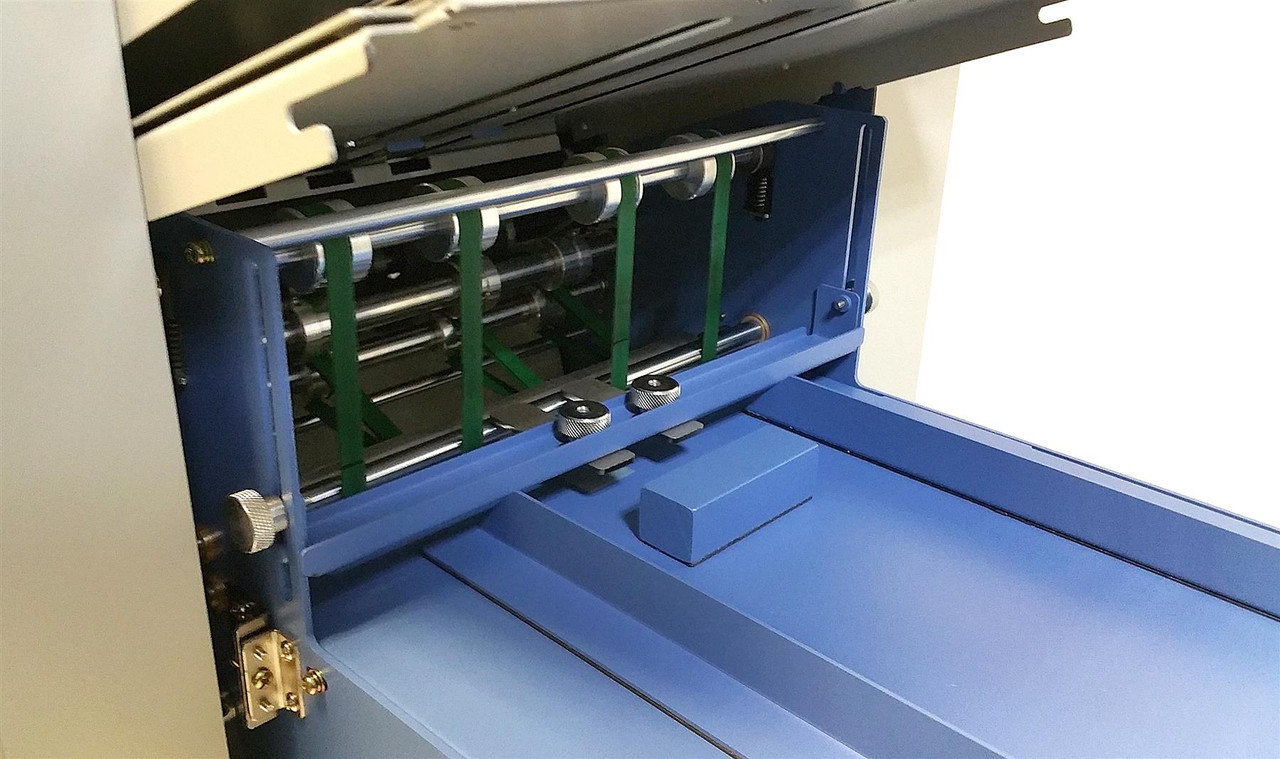

With multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths, the PH65 is flat-friction fed using a 2 feed wheel system with thickness separator, for paper weights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 290mm x 500mm. The PH65 folder can produce greater than 16 styles of set folds and custom folds from its 6 fold plates and its smallest fold is 18mm with a high-speed output of up to 12,000 leaflets per hour. It also has a creasing tool that will crease the folded document, so it can be inserted quickly and easily into your product carton.
Postroom-online is one of the UK's biggest sellers of Galaxy folding machines, letter openers & joggers and has been expertly servicing their products since 2007. With a massive range of folding machines to fit all needs and budgets, we are home to officially the LARGEST Galaxy and Paper Folding showroom in the UK.
We are happy to process a sample of your stock through our machines to test suitability first. Please contact us for more details.
|Suitable For:||Commercial Grade Pharmaceutical Folding Machine|
|Paper Size:||Min: 80x100mm - Max: 290x500mm|
|Paper Weight:||45 - 150gsm|

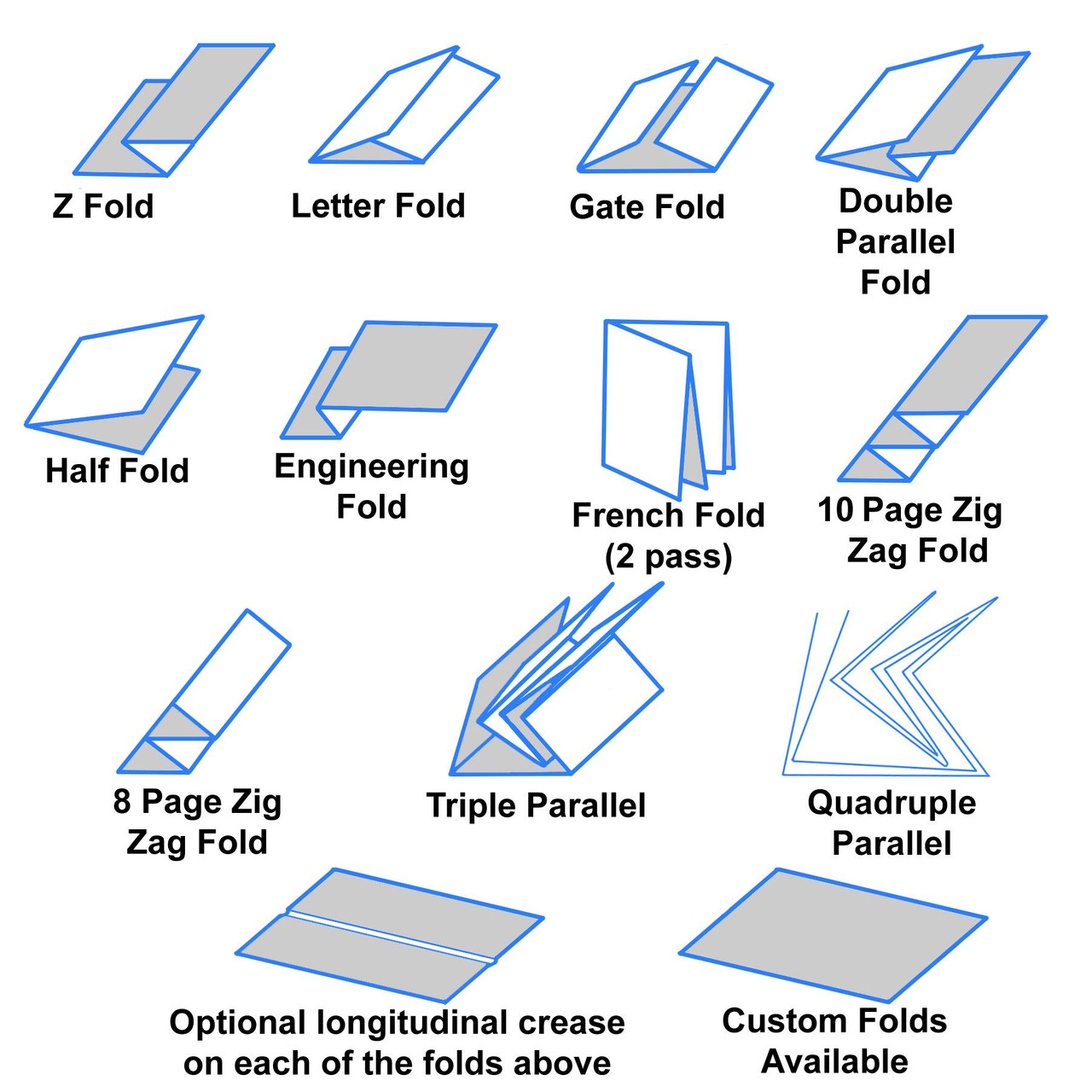

|Fold Types:||Greater than 16 Fold Types plus Custom Folds|
|Cross Fold:||Cross Crease Equipped|
|Sheets Per Minute:||200|
|Sheets Per Hour:||12000|
|Feed Tray Capacity:||150|
|Piece Counter:||Yes - With Batch Count|
|Hand or Automatic Feed:||Automatic|
|Tyres:||2 x 20mm|
|Multiple Sheets (AKA Manual Bypass):||No|
|Conveyor for Exiting Paper:||Yes|
|Auto Shut Off:||Yes|
|Jam Detect:||Yes with Error Codes|
|Reload Whilst Running:||Yes|
|Country / Region of Manufacture:||Taiwan|
|Dimensions W x D x H (mm):||1115 x 495 x 550|
|Extended Warranty Maintenance Available:||Technician Installation Included. Extended Service Available|
|Special Features 1:||Ultra small folds down to 18mm|
