Product Description
The Galaxy PH40 Pharmaceutical Paper Folding Machine enables you to perform multiple small folds from as little as 38mm on 45 - 150gsm paper. This pharmacy folder is suitable for businesses that require small dosage instructions/manuals/pamphlets/safety sheets to be folded prior to insertion into small product boxes. Other suitable markets include those in the cosmetic, healthcare, production and parts industries.

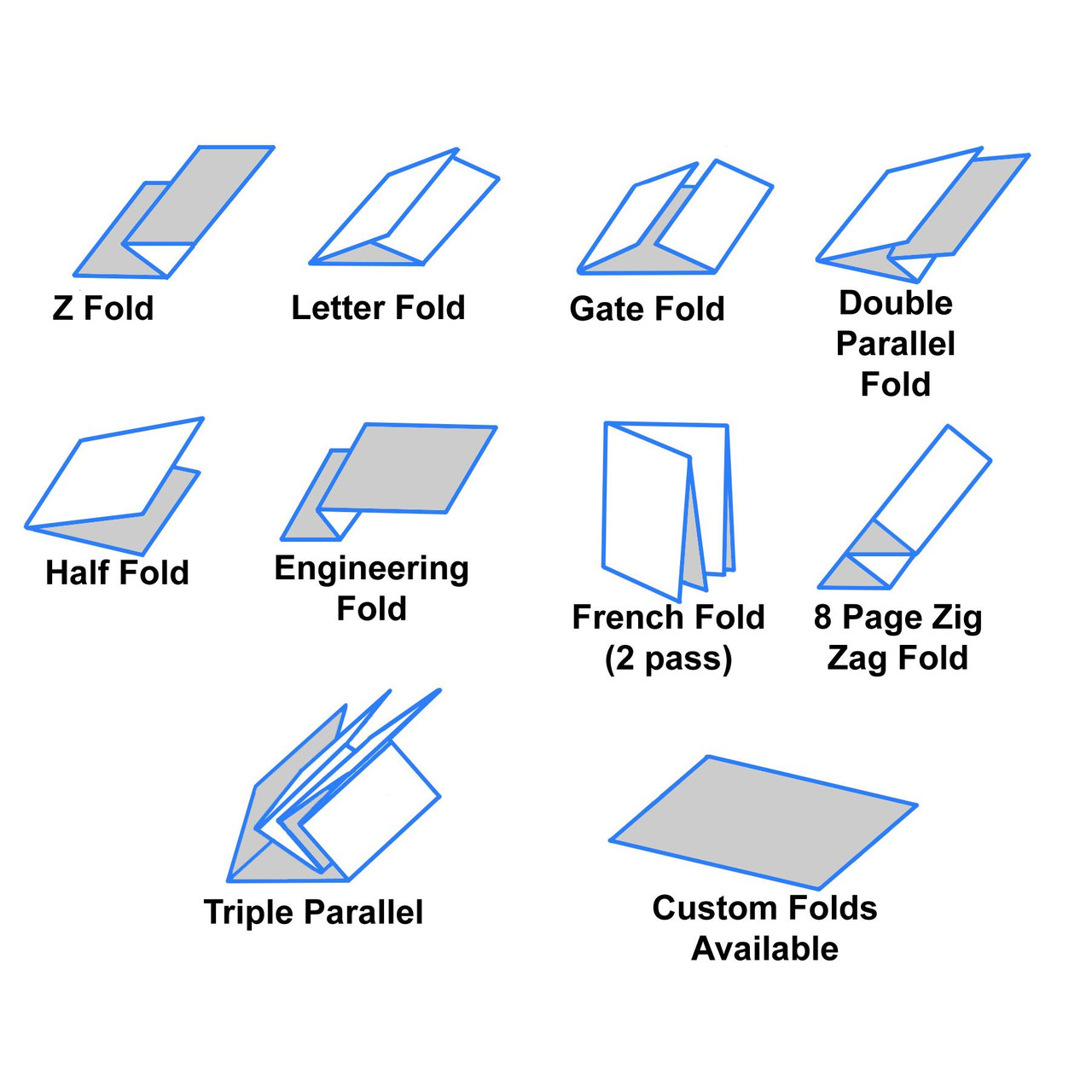

With multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths. The PH40 is flat-friction fed using a 2 feed wheel system with thickness separator, for paper weights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 300mm x 500mm. The PH40 folder can produce 16 styles of set folds and custom folds from its 4 fold plates and its smallest fold is 38mm with a high-speed output of up to 12,000 leaflets per hour.

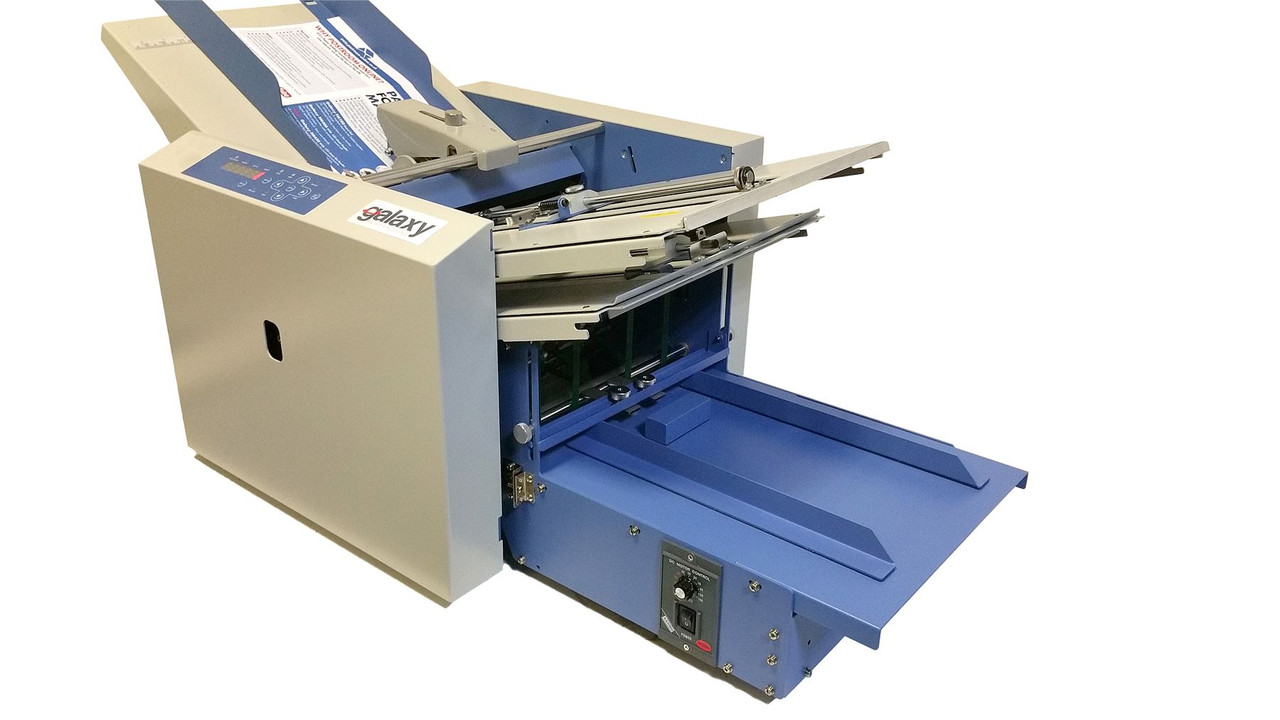

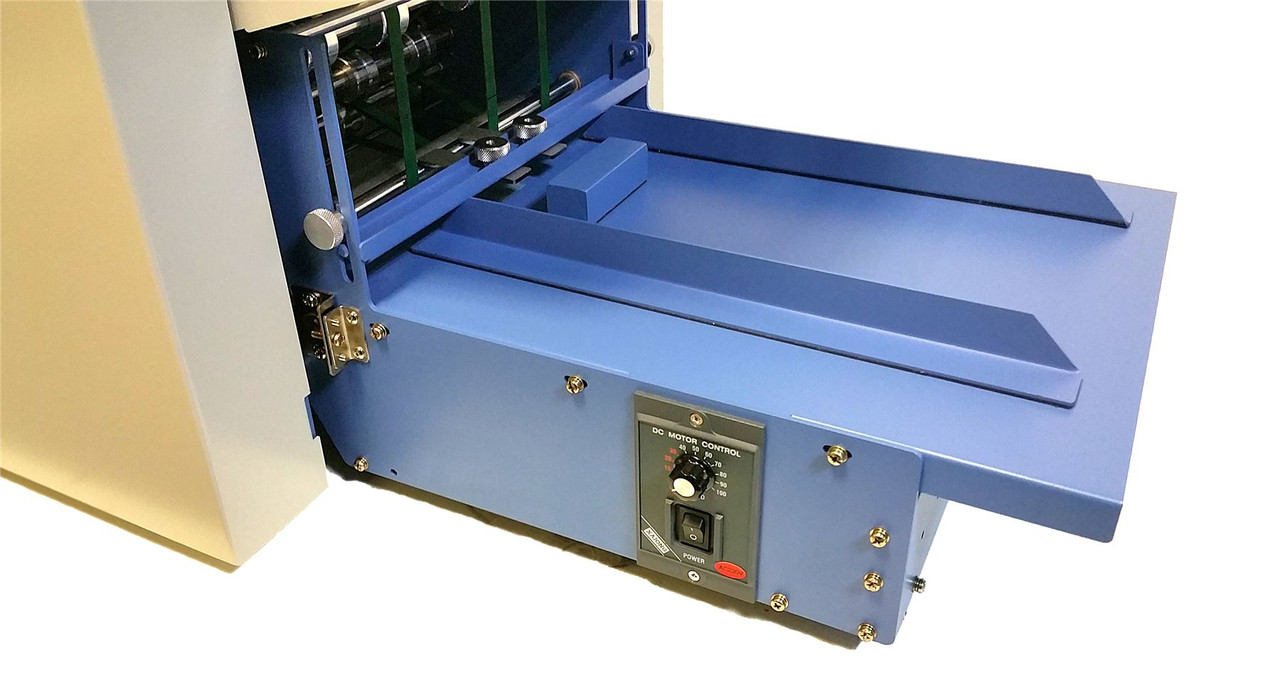

The Galaxy PH40v Pharmaceutical Paper Folding Machine is the same as the PH40 but also has the additional removable vertical stacker that collects leaflets neatly at the end of the folding process. The stacker has a positive impact on productivity, reducing the time and effort required in collating the folded leaflets before placing them in product boxes.
Postroom-online is one of the UK's biggest sellers of Galaxy folding machines, letter openers & joggers and has been expertly servicing their products since 2007. With a massive range of folding machines to fit all needs and budgets, we are home to officially the LARGEST Galaxy and Paper Folding showroom in the UK.
We are happy to process a sample of your stock through our machines to test suitability first. Please contact us for more details.
Suitable For: | Commercial Grade Pharmaceutical Folding Machine |
Paper Size: | Min: 80x100mm - Max: 290x500mm |
Paper Weight: | 45 - 150gsm |
Fold Types: | 16 Fold Types plus Custom Folds |
Cross Fold: | See PH45/PH65 |
Sheets Per Minute: | 200 |
Sheets Per Hour: | 12000 |
Feed Tray Capacity: | 150 |
Speed Controller: | Yes |

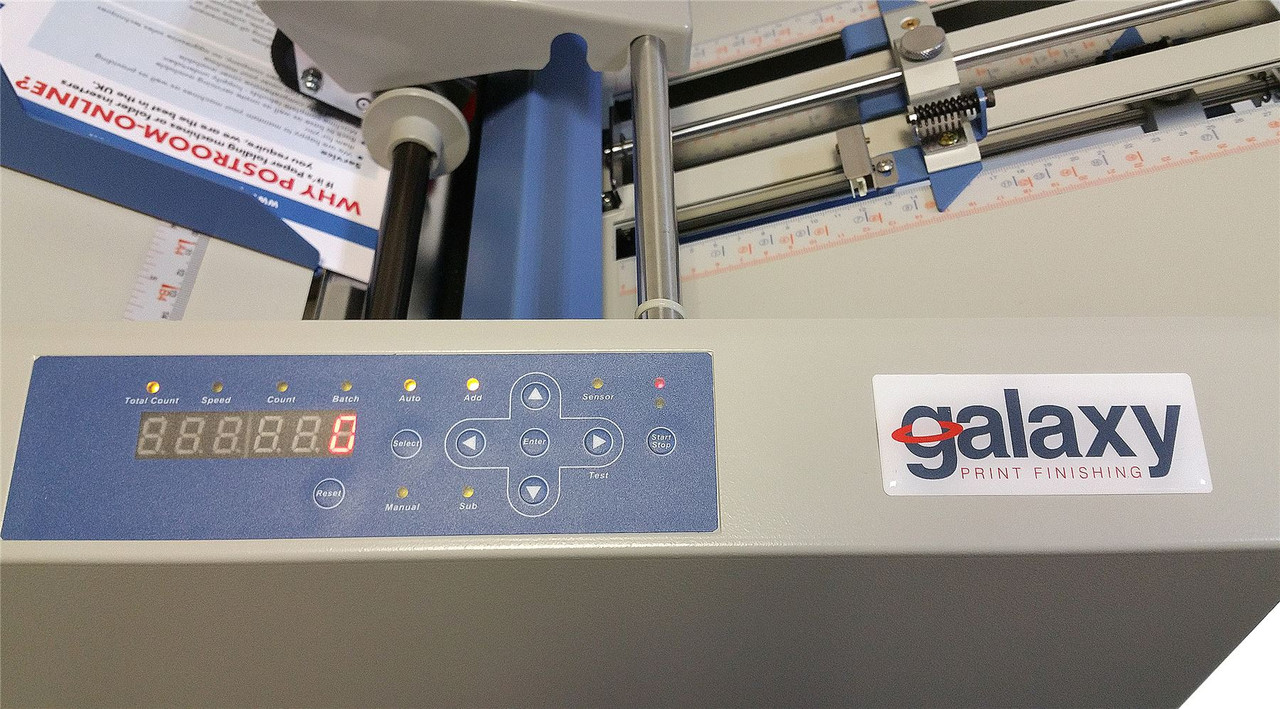

Piece Counter: | Yes - With Batch Count |
Feed Type: | Friction |
Hand or Automatic Feed: | Automatic |
Tyres: | 2 x 20mm |
Multiple Sheets (AKA Manual Bypass): | No |
Conveyor for Exiting Paper: | Yes |
Auto Shut Off: | Yes |
Jam Detect: | Yes with Error Codes |
Reload Whilst Running: | Yes |
Dimensions W x D x H (mm): | 1100 x 525 x 510 |
Extended Warranty Maintenance Available: | Technician Installation Included. Extended Service Available |
Special Features 1: | Small folds down to 38mm |
