Product Description

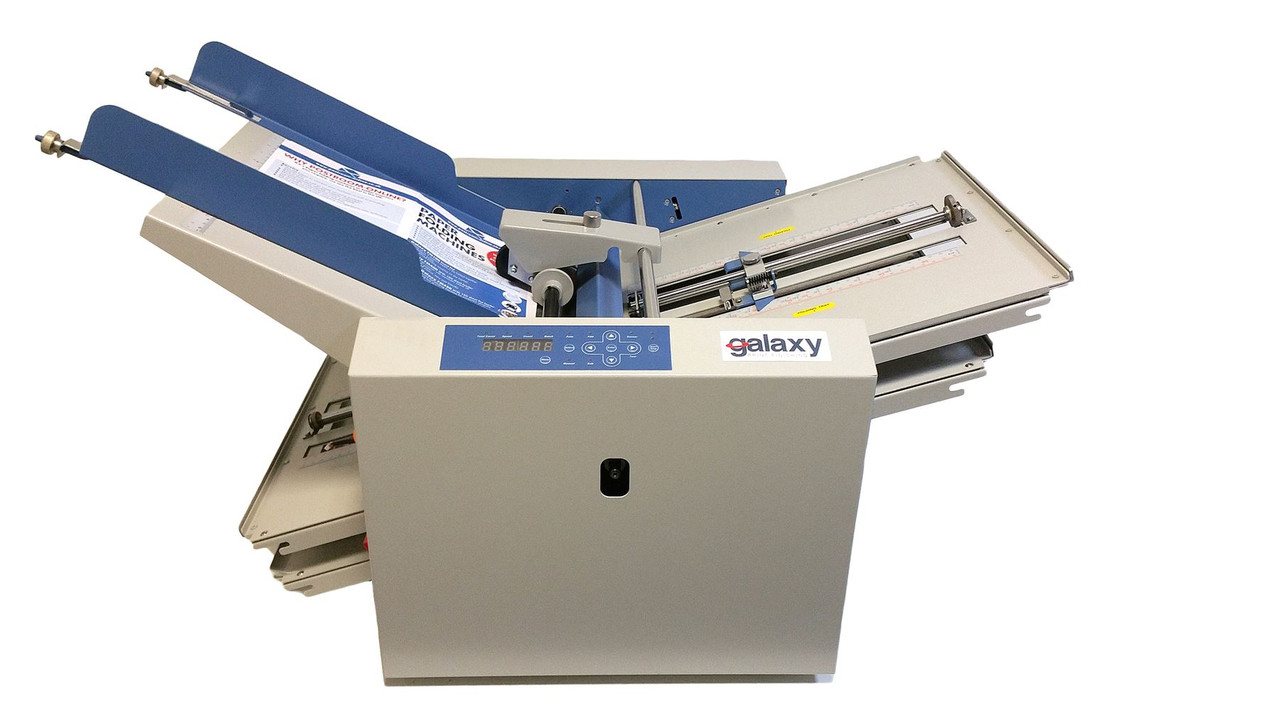

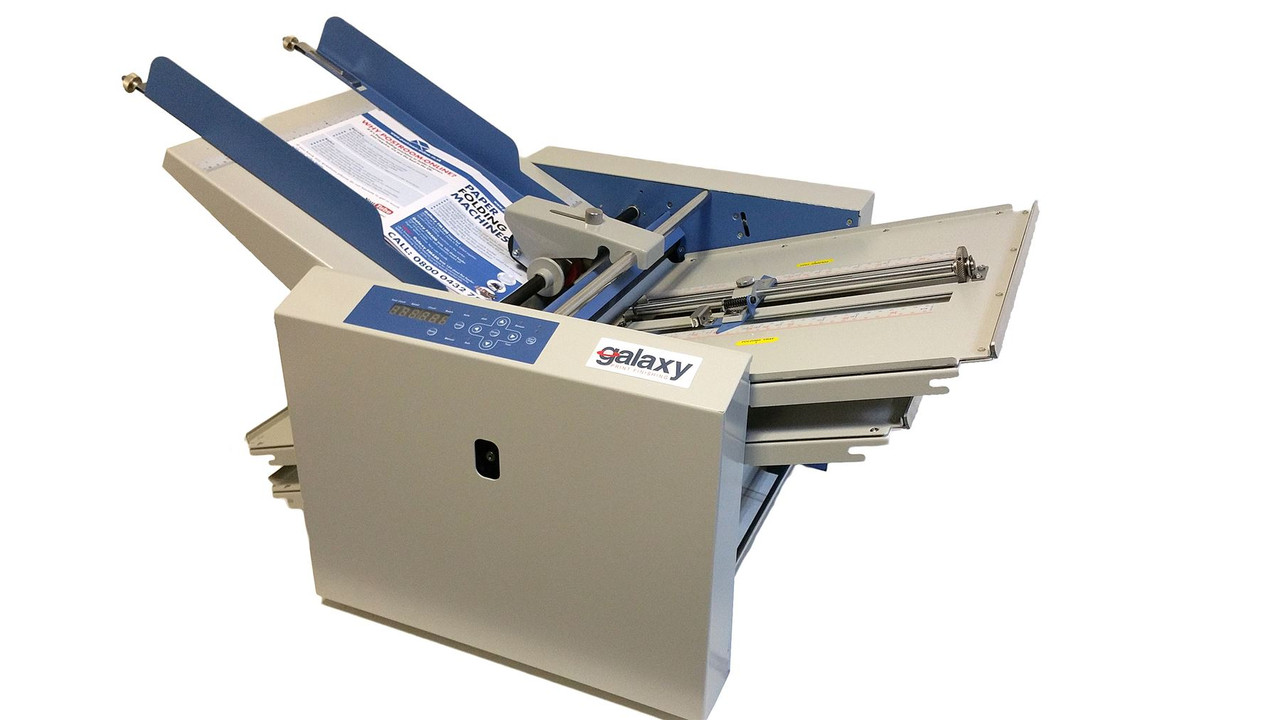

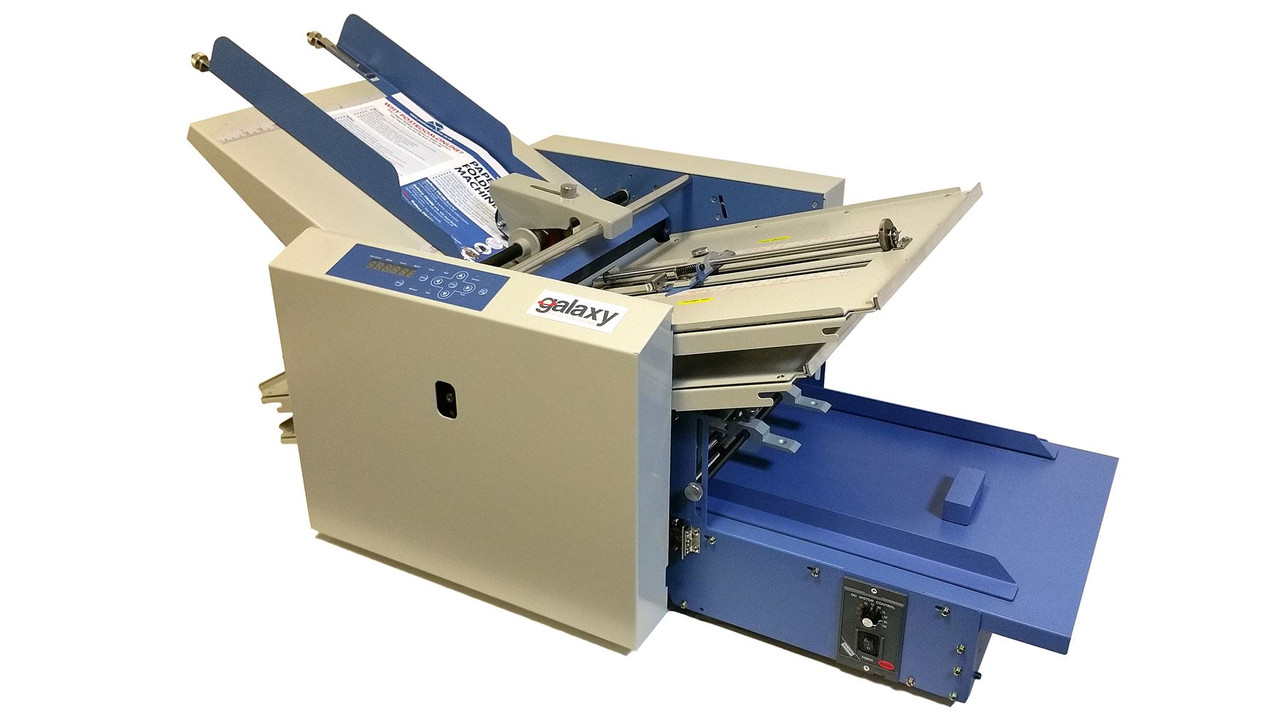

The Galaxy PH45 (Wide) SRA3 Pharmaceutical Paper Folding Machine enables you to perform multiple small folds from as little as 38mm on 45 - 150gsm paper. This pharmacy folder is suitable for businesses that require small instructions/manuals to be folded prior to insertion into small product boxes. Other suitable businesses include those in the cosmetic, healthcare, production and parts markets/industries.

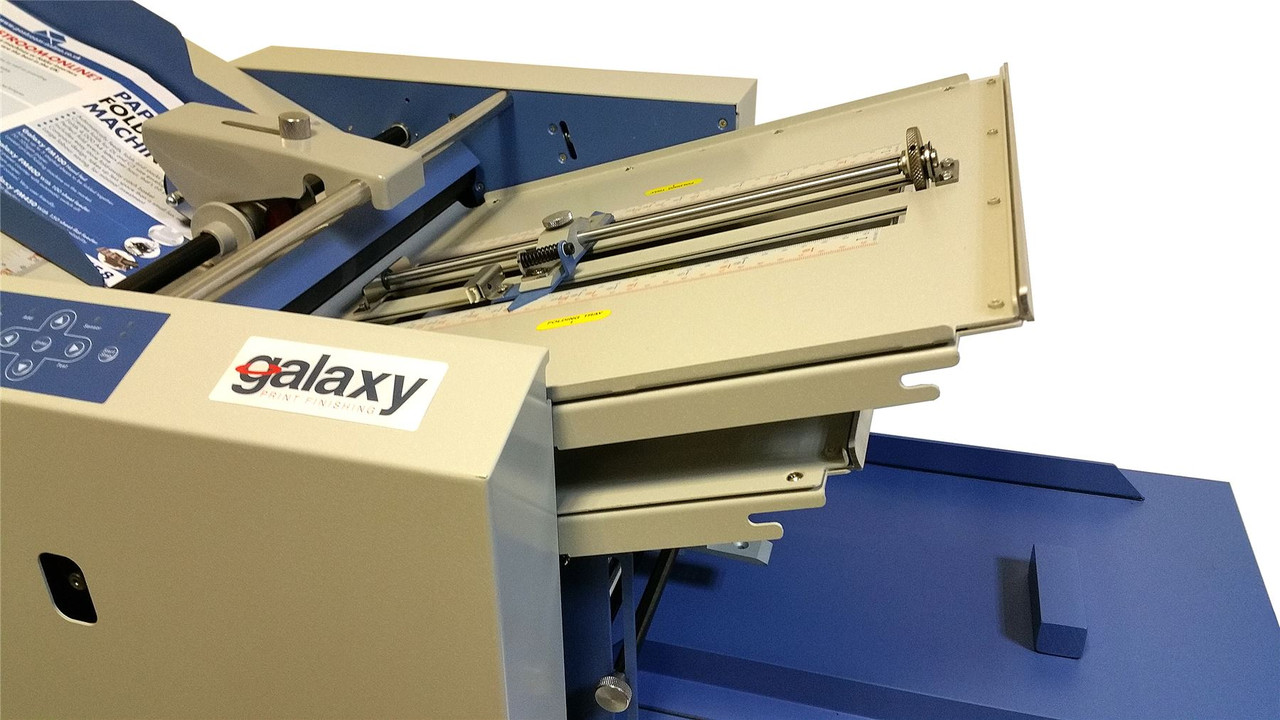

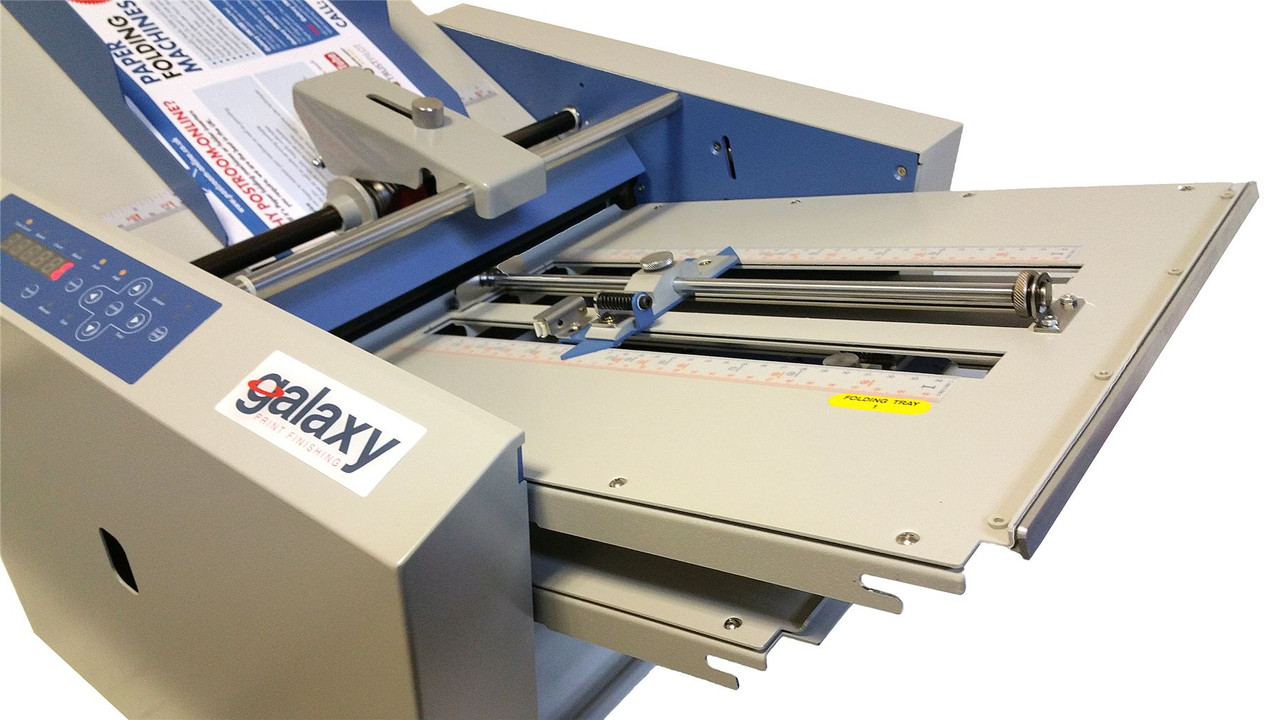

With multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths, the PH45 is flat-friction fed using a 2 feed wheel system with thickness separator, for paperweights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 350mm x 540mm. The PH45 folder can produce 16 styles of set folds and custom folds from its 4 fold plates and its smallest fold is 38mm with a high-speed output of up to 12,000 leaflets per hour. It also has a creasing tool that will crease the folded document, so it can be inserted quickly and easily into your product carton.

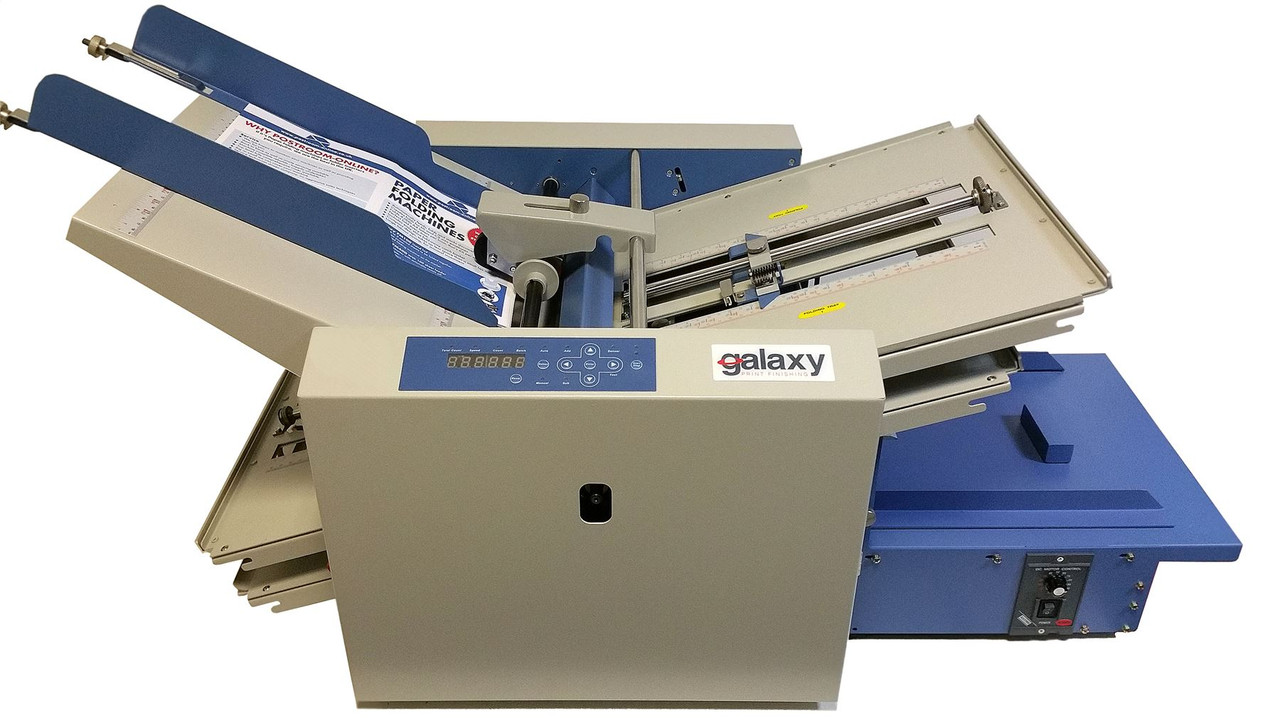

The Galaxy PH45v is the same as the PH45 but it also has the additional premium vertical stacker that collects leaflets neatly at the end of the folding process. The stacker has a positive impact on productivity, reducing the time and effort required in collating the folded leaflets before placing them in product boxes.
Postroom-online is one of the UK's biggest sellers of Galaxy folding machines, letter openers & joggers and has been expertly servicing their products since 2007. With a massive range of folding machines to fit all needs and budgets, we are home to officially the LARGEST Galaxy and Paper Folding showroom in the UK.
We are happy to process a sample of your stock through our machines to test suitability first. Please contact us for more details.
Suitable For: | Commercial Grade Pharmaceutical Folding Machine |
Paper Size: | Min: 80x100mm - Max: 340x540mm commen Sizes A6, A5, A4, A3, SRA3 |
Paper Weight: | 45 - 150gsm |

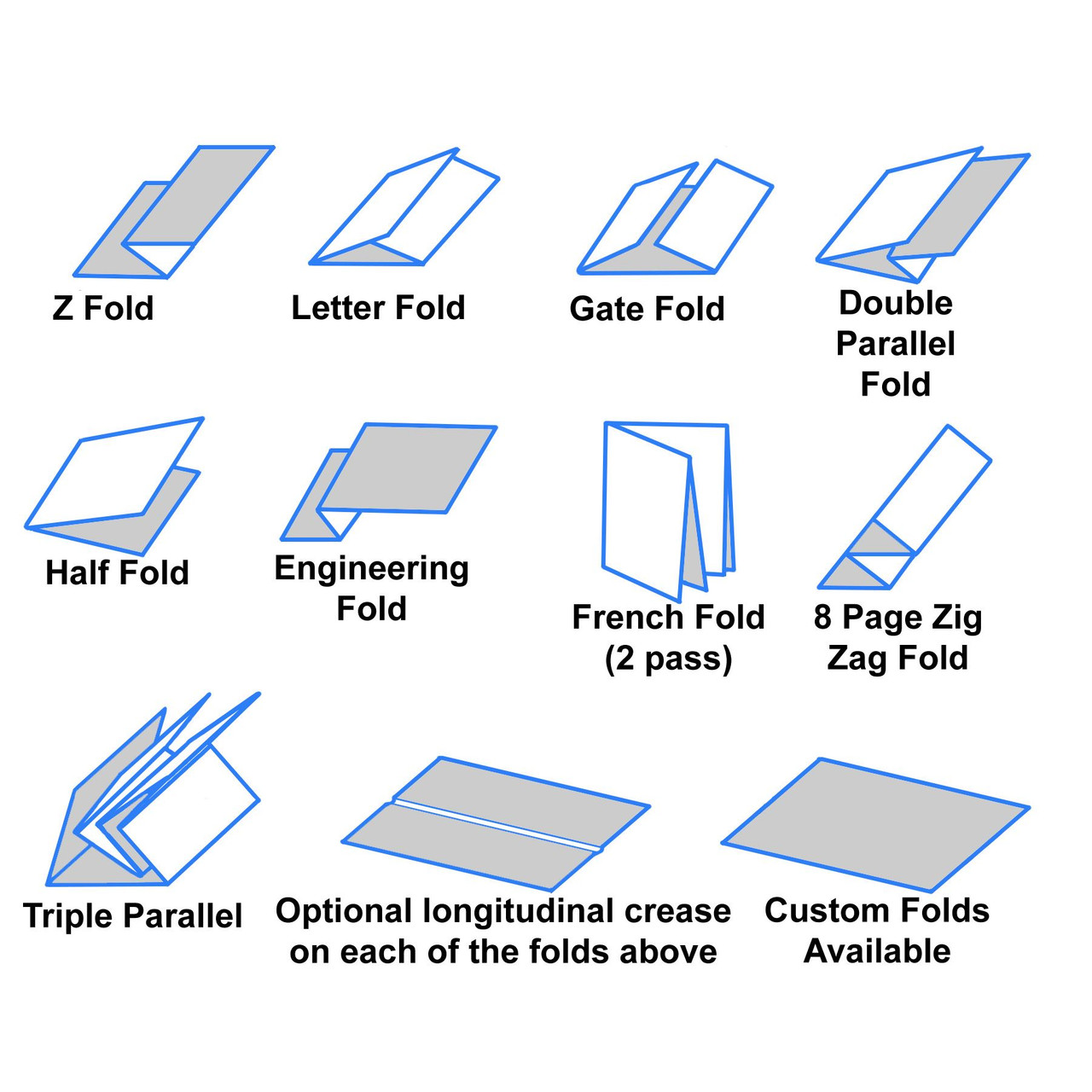

Fold Types: | 16 Fold Types plus Custom Folds |
Cross Fold: | Cross Crease Equipped |
Sheets Per Minute: | 200 |
Sheets Per Hour: | 12000 |
Feed Tray Capacity: | 150 |
Speed Controller: | Yes |

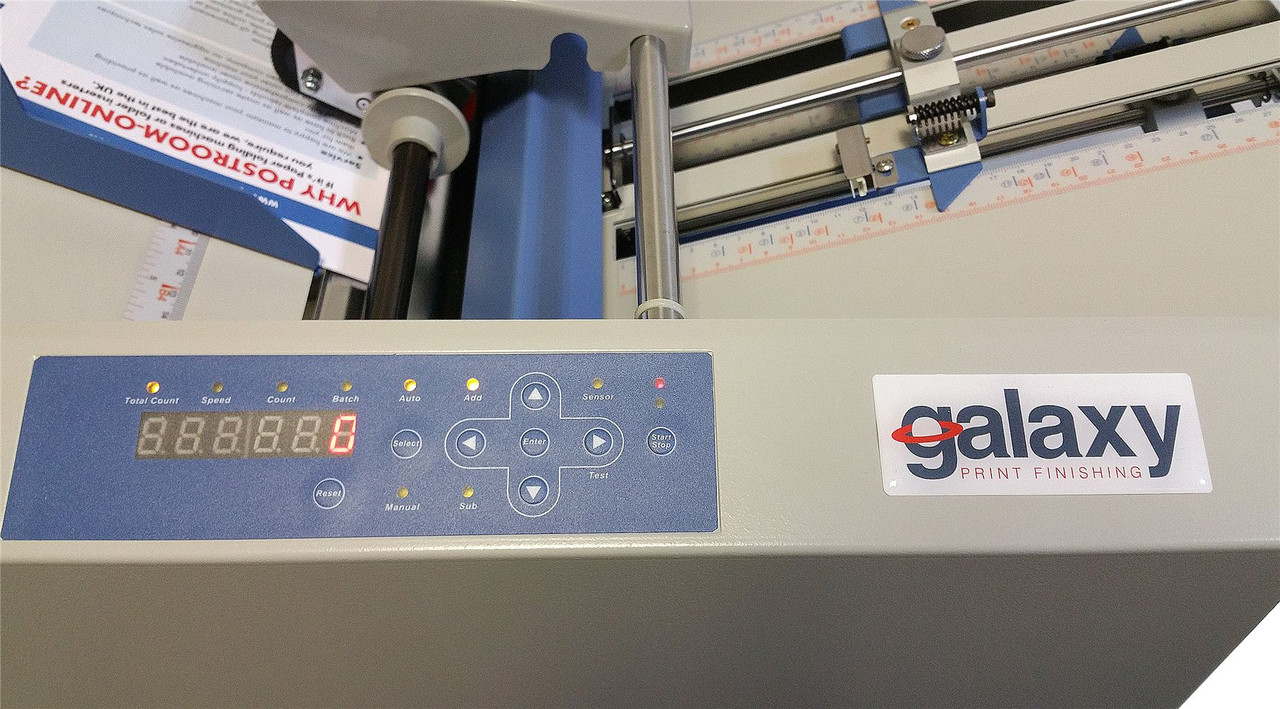

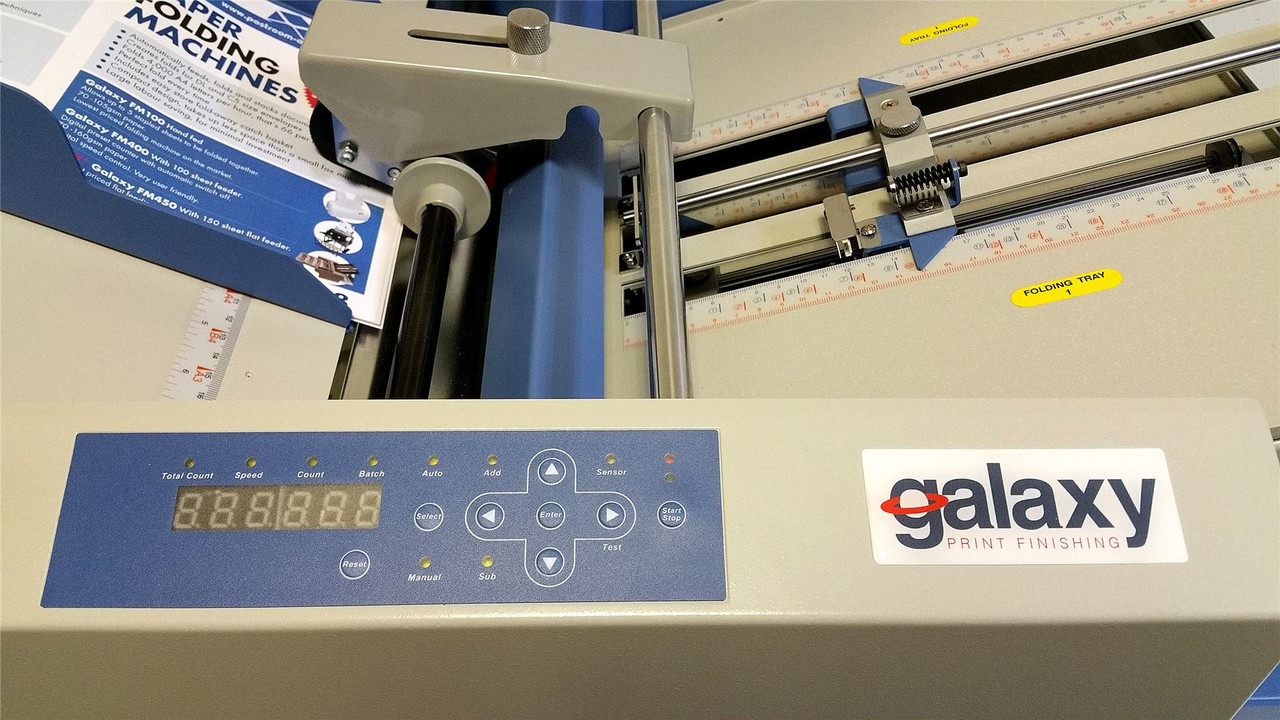

Piece Counter: | Yes - With Batch Count |
Feed Type: | Friction |
Hand or Automatic Feed: | Automatic |
Tyres: | 2 x 20mm |
Multiple Sheets (AKA Manual Bypass): | No |
Conveyor for Exiting Paper: | Yes |
Auto Shut Off: | Yes |
Jam Detect: | Yes with Error Codes |
Reload Whilst Running: | Yes |
Dimensions W x D x H (mm): | 1100 x 570 x 510 |
Extended Warranty Maintenance Available: | Technician Installation Included. Extended Service Available |
Special Features 1: | Small folds down to 38mm |
